液压油滤卷圆机008
技术参数 | Technical Parameters |
---|---|
板厚:1.2-1.6毫米 | Plate thickness:1.2-1.6mm |
带宽:138毫米 | Band width:138mm |
生产管径:¢150-¢500毫米 | Production pipe diameter:¢150-¢500mm |
工作方式:全自动,切断不停机 | Working mode: automatic, cut off without stopping |
工作线速度:15米/分 | Working line speed: 15m / min |
电机功率:11kw | Motor power: 11kw |

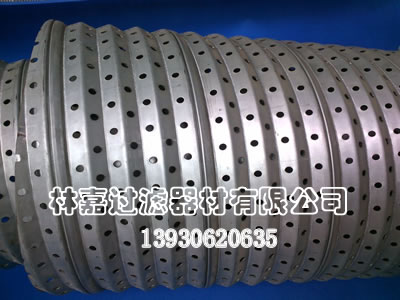

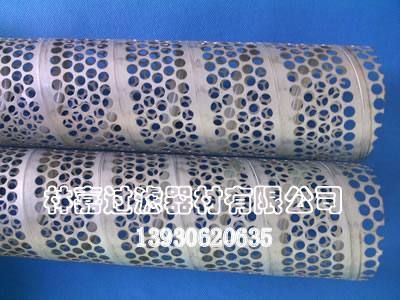

适用产品:特殊过滤器材,耐高压液压油网管,油气分离中网 | Applies to products: special filtration equipment, high pressure resistant hydraulic oil management oil and gas separation net |
适用材质:镀锌带,渗锌板 | Applicable materials: galvanized strip,penetrating zinc plate |
外形尺寸 | The shape size |
开卷机:1800*700*1500mm | The uncoiler: 1800*700*1500mm |
重量:800kg | Weight: 800kgkg |
40吨高速冲床:1200*800*2000 | 40 tons of high-speed punch: 1200*800*2000 |
重量:2000kg | Weight:2000kg |
卷圆主机:1500*1500*1400 | Roll round the host: 1500*1500*1400 |
重量:1500kg | Weight:15000kg |
